Description

Specification

Model

SST-1GX1GT4GT

Interface

4*1Gbps RJ45 ports

1*1Gbps uplink RJ45 port

1*1Gbps SFP port

Port Standard

IEEE802.3 (Ethernet)

IEEE802.3u (Fast Ethernet)

IEEE802.3ab (Gigabit Ethernet)

IEEE802.3z (Gigabit Ethernet Fibre Standards)

IEEE802.3x (Flow Control)

Switching Bandwidth

12Gbps

Packet Forwarding Rate

8.928Mpps

Packet Buffer

1Mbit

MAC Address Table

2K

Transmission Method

Store and Forward

Power Supply

DC12~55V

Power wiring: 4 PIN industrial terminals (redundant V1+V1-, V2+V2-)/ DC 2.1
(DC 2.1 cannot be combined with V1, V2 used simultaneously)

Mainboard Power Consumption

4.96W

Structure Information

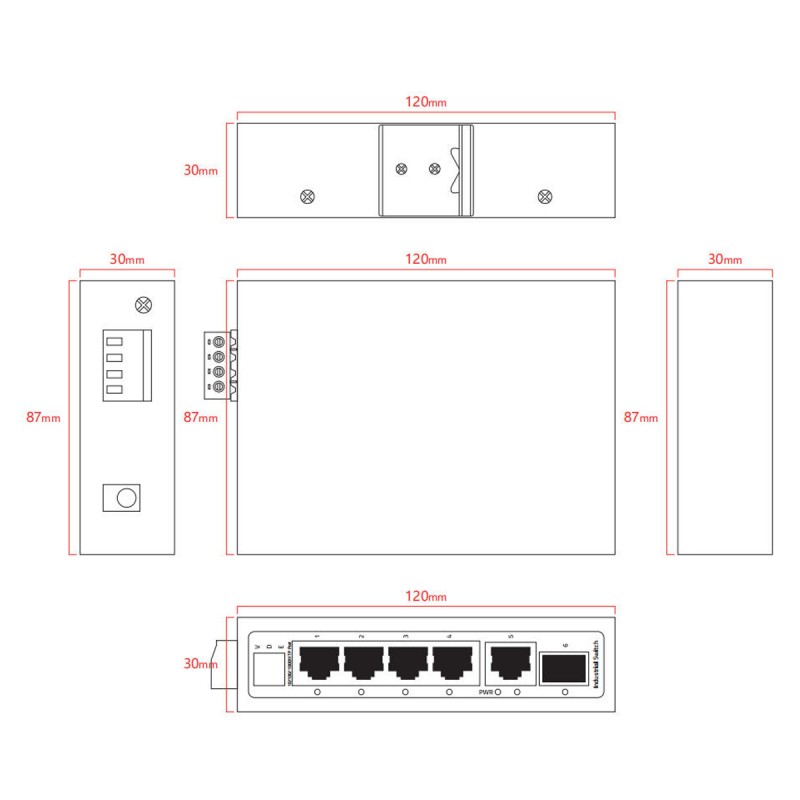

Product Dimensions: 120*87*30mm

Packaging Dimensions: 175*130*55mm

Product Net Weight: 0.441KG

Product Gross Weight: 0.530KG (excluding power supply)

Packing Information

Carton Dimensions: 540*290*375mm

Packing Quantity: 40PCS

Packing Weight: 22.2KG

Package Contents

Switch 1pcs, Manual 1pcs, Certificate of Inspection 1pcs

Certification

CE, FCC, RoHS

Fan Quantity

0

Installation

Desktop, Wall mounting installation, Rail installation

Surge Protection

Port Surge: Common mode 4KV

Electrostatic ESD: Air 8KV, Contact 6KV (Class C)

Operating Temperature

-40~75°C

Storage Temperature

-40~85°C

Operation Humidity

10%~90%, non condensing

Storage Humidity

5%~95%, non condensing

PWR Red LED

On: Powered on

Off: Powered off

Ports 1-6 Green LED

On: 10/100/1000Mbps Link normal

Off: Link blocked

Fast Flashing: Data transmitting

V/D/E Modes LED

V: VLAN mode, ports 1-4 are isolated from each other, communicating with
ports 5-6

D: Normal mode, all ports can communicate with each other, transmission
distance is  within 100 meters, transmission rate is 10/100Mbps adaptive

E: Extend mode, ports 1-4 force 10Mbps to extend the transmission distance
to 250meters
