8-Port 100Mbps and 1-Port Gigabit with 1-Port Gigabit SFP Industrial Ethernet Switch

1, 8*100Mbps RJ45 ports+1*1Gbps uplink RJ45 port+1*1Gbps SFP port

2, Working Temperature from -40~75°C

3, 4PIN industrial terminal+DC2.1 input interface, DC48-55V wide voltage input

4, IP40 protection level, high-strength shell, DIN35 rail installation

5, Support redundant power supply connection and anti reverse connection

6, Support VLAN, Extend

Description	Specification
Model	SST-1GX1GT8TX
Interface	8100Mbps RJ45 ports 11Gbps uplink RJ45 port 1*1Gbps SFP port
Port Standard	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3z (Gigabit Ethernet Fibre Standards) IEEE802.3x (Flow Control)
Switching Bandwidth	5.6Gbps
Packet Forwarding Rate	4.166Mpps
Packet Buffer	4Mbit
MAC Address Table	8K
Transmission Method	Store and Forward
Power Supply	DC12~55V Power wiring: 4 PIN industrial terminals (redundant V1+V1-, V2+V2-）/ DC 2.1 (DC 2.1 cannot be combined with V1, V2 used simultaneously)
Mainboard Power Consumption	3.88W

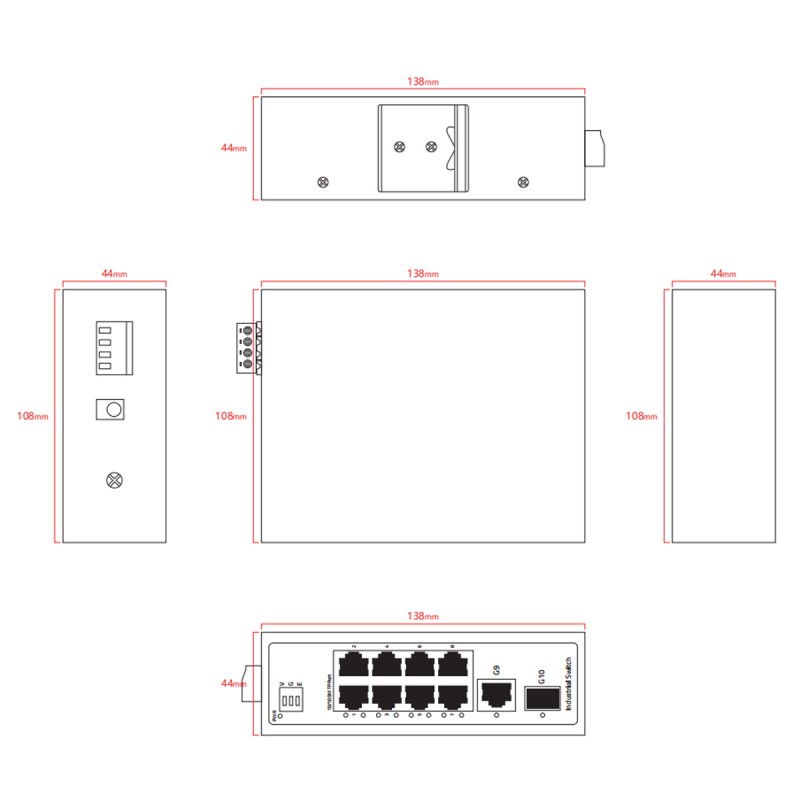

Structure Information	Product Dimensions: 13810844 mm Packaging Dimensions: 24519060mm Product Net Weight: 0.5KG Product Gross Weight: 0.63KG (excluding power supply)
Packing Information	Carton Dimensions: 520320400mm Packing Quantity: 20PCS Packing Weight: 13.66KG
Package Contents	Switch 1pcs, Manual 1pcs, Certificate of Inspection 1pcs
Certification	CE, FCC, RoHS

Description	Specification
Fan Quantity	0
Installation	Desktop, Wall mounting installation, Rail installation
Surge Protection	Port Surge: Common mode 4KV, Differential mode 2KV Electrostatic ESD: Air 8KV, Contact 6KV (Class C)
Operating Temperature	-40~75°C
Storage Temperature	-40~85°C
Operation Humidity	10%~90%, non condensing
Storage Humidity	5%~95%, non condensing
PWR Red LED	On: Powered on Off: Powered off
Ports 1-8 Green LED	Slow Flashing: 10/100Mbps Link normal Off: Link blocked Fast Flashing: Data transmitting
Port G9 Green LED	Slow Flashing: 10/100/1000Mbps Link normal Off: Link blocked Fast Flashing: Data transmitting
Port G10 Green LED	On: 10/100/1000Mbps Link normal Off: Fiber optic link blocked Flashing: Link data transmission
V/G/E Modes Buttons	V: VLAN mode, ports 1-8 are isolated from each other, communicating with ports 9-10, G: Normal mode, all ports can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100Mbps adaptive E: Extend mode, ports 1-8 force 10Mbps to extend the transmission distance to 250meters
