10-Port Gigabit Industrial Switch

1, 8*1Gbps ports+2*1Gbps SFP ports

2, Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z/ab

3, IP40 protection level, high-strength aluminum shell, DIN35 rail installation

4, Industrial grade 4-level design, operating temperature from -40~75°C

5, Support redundant power supply connection and anti reverse connection

6, Support Fast Ring and Extend

Description	Specification
Model	SST-2GX8GT
Interface	81Gbps RJ45 ports 21Gbps SFP ports
Port Standard	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3z (Gigabit Ethernet Fiber Standard) IEEE802.3x (Flow Control)
Switching Bandwidth	20Gbps
Packet Forwarding Rate	14.88Mpps
Packet Buffer	1Mbit
MAC Address Table	2K
Jumbo Frame	10Kbytes
Transmission Method	Store and Forward
Mainboard Power Consumption	6.96W

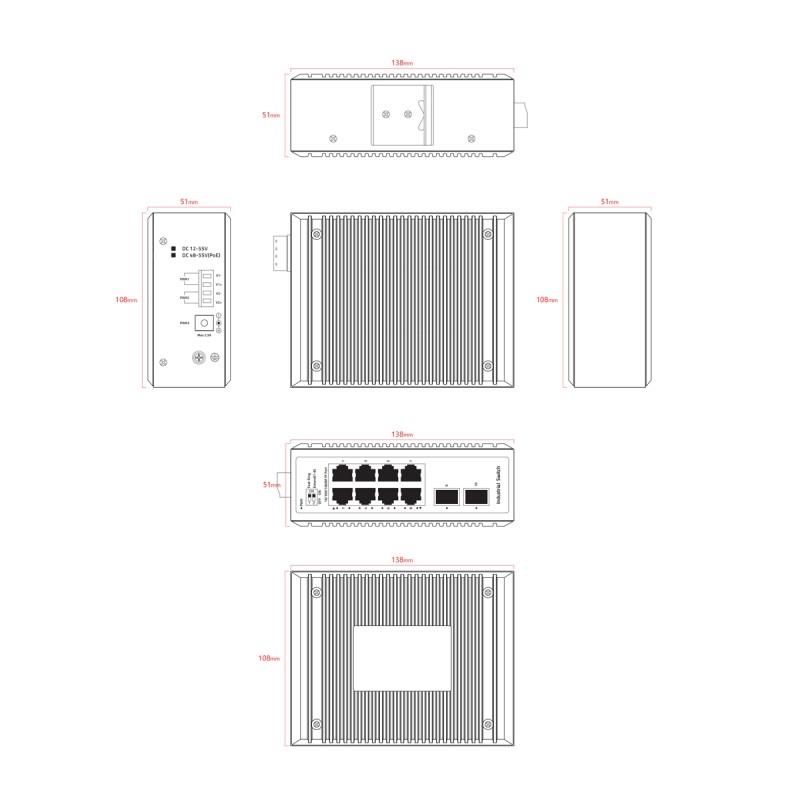

Structure Information	Product Dimensions: 13810851mm Packaging Dimensions: 24519070mm Product Net Weight: 0.71KG Product Gross Weight: 0.92KG
Packing Information	Carton Dimensions: 520380400mm Packing Quantity: 20PCS Packing Weight: 19.4KG
Package Contents	Switch 1pcs, Manual 1pcs, Certificate of Inspection 1pcs
Power Supply	DC12~55V Power wiring: 4 PIN industrial terminals (redundant V1+V1-, V2+V2-)/DC 2.1

Description	Specification
Fan Quantity	0
Certification	CE, FCC, RoHS
Installation	Desktop, Wall mounting installation, Rail installation
Surge Protection	Port Surge: Common mode 6KV, Differential mode 2KV (Class B) Electrostatic ESD: Air 15KV, Contact 8KV (Class C)
Operating Temperature	-40~75°C
Storage Temperature	-40~85°C
Operation Humidity	10%~90%, non condensing
Storage Humidity	5%~95%, non condensing
PWR Green LED	On: Powered on Off: Powered off
Ports 1-8 Green LED	On: 10/100/1000Mbps Link normal Off: Link blocked Fast Flashing: Data transmitting
Ports G9-G10 Green LED	On: 1Gbps Link normal Off: Link blocked Flashing: Data transmitting
Button	Fast Ring: Fast Ring on, T<2s Extend: Extend mode, ports 7-8 force 10Mbps to extend the transmission distance to 250meters
