Shenzhen SunSoont Technology Co., Ltd
and other technologies, provide high / low temperature, lightning protection and other outstanding industrial quality. It can
meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.
Specification
|
Provider Mode Ports |
|
|
Fixed port |
4*1000 Base-X， 24*10/100/1000 Base-T |
|
Power interface |
Phoenix terminal, redundant dual power supply
ssusupplysupply |
|
LED Indicators |
PWR，Link/ACT LED |
|
|
|
|
Cable Type & Transmission Distance |
|
|
Twisted-pair |
0-100m（CAT5e,CAT6） |
|
Monomode optical fiber |
20/40/60/80/100KM |
|
Multimode optical fibre |
550m |
|
|
|
|
Network Topology |
|
|
Ring topology |
Unsupported |
|
Star topology |
Support |
|
Bus topology |
Support |
|
Tree topology |
Support |
|
|
|
|
Electrical Specifications |
|
|
Input voltage |
No- PoE: DC12~58V PoE: DC48-58V |
|
Total Power consumption |
Non-PoE: <26W PoE: <386W |
|
|
|
|
PoE Support |
|
|
PoE port |
1~24 |
|
PoE Protocol |
802.3af，802.3at |
|
Pin Assignment |
1,2+/3,6- |
|
|
|
|
PoE++ Support |
|
|
PoE port |
1~24 |
|
PoE Protocol |
802.3af，802.3at, 802.3bt (ports 1-2 & 23-24 support up to 60W) |
|
Pin Assignment |
1,2,4,5+/3,6,7,8- |
|
|
|
|
Layer 2 Switching |
|
|
Switching capacity |
68G
|
|
Packet forwarding rate |
50.59Mpps
|
|
MAC address table |
16K |
|
Buffer |
12M |
|
Forwarding delay |
<10us |
|
MDI/MDIX |
Support |
|
Flow control |
Unsupported |
|
Jumbo Frame |
Support 10K Bytes |
|
|
|
|
Environment |
|
|
Operating temperature |
No- PoE: -40℃~+75℃ PoE: -40℃~+70℃ |
|
Storage temperature |
-40℃~+85℃ |
|
Relative humidity |
5%~95% non-condensing |
|
Thermal methods |
Fanless, natural cooling
|
|
MTBF |
100,000 hours |
|
|
|
|
Mechanical Dimensions |
|
|
Product size |
94*104*143mm |
|
Installation Method |
DIN-rail |
|
Weight |
1KG |
|
|
|
|
EMC & Ingress Protection |
|
|
IP Level |
IP40 |
|
Surge protection of Power |
IEC 61000-4-5 Level X（6KV/6KV）（8/20us） |
|
Surge protection of Ethernet port |
IEC 61000-4-5 Level 4（4KV/4KV）（10/700us） |
|
RS |
IEC 61000-4-3 Level 3（10V/m） |
|
EFI |
IEC 61000-4-4 Level 3（1V/2V） |
|
CS |
IEC 61000-4-6 Level 3（10V/m） |
|
PFMF |
IEC 61000-4-8 Level 4（30A/m） |
|
DIP |
IEC 61000-4-11 Level 3 （10V） |
|
ESD |
IEC 61000-4-2 Level 4（8K/15K） |
|
Free fall |
0.5m |
|
|
|
|
Standards Compliance |
|
|
Standards Compliance |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T |
|
|
|
|
Authentication |
|
|
Authentication |
CE/FCC/RoHS |
|
|
|
|
Accessories |
|
|
Accessories |
Device, Terminals, Specification, Certificate, Power adapter(optional) |
|
|
|
|
Optional Model |
|
|
SST-4GX24GT |
4*1000Mbps SFP fiber ports, 24*10/100/1000Mbps RJ45 ports |
|
SST-4GX24GP |
4*1000Mbps SFP fiber ports, 24*10/100/1000Mbps RJ45 ports, PoE & PoE+ support |
|
SST-4GX24GPB |
4*1000Mbps SFP fiber ports, 24*10/100/1000Mbps RJ45 ports, PoE++ support
|

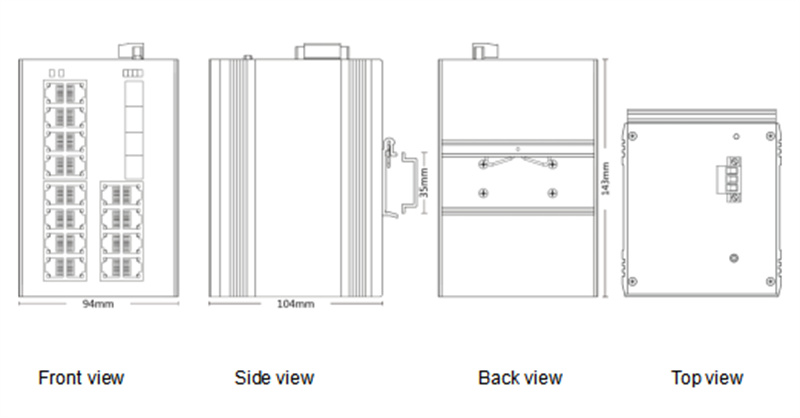

Product Structure Diagram
