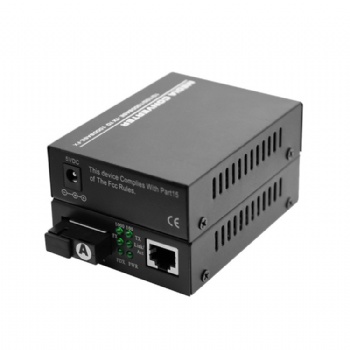

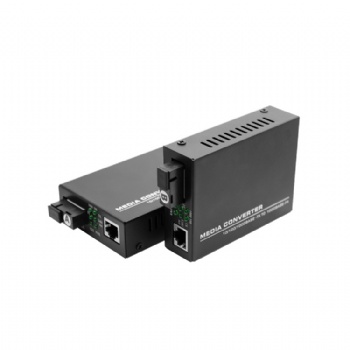

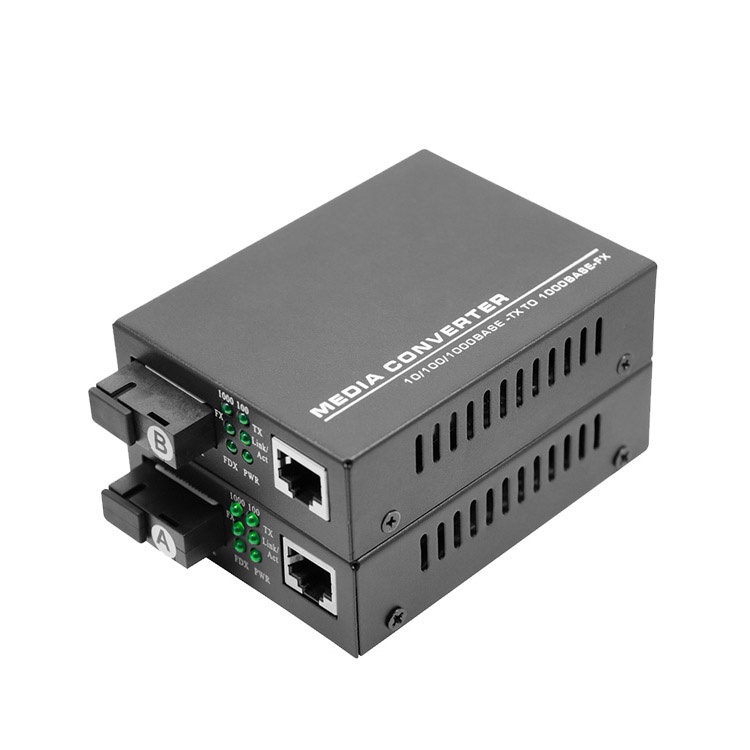

1.25G Gigabit SC fiber Media Converter

Gigabit Series Media Converter is a 10/100/1000Mbps adaptive gigabit Ethernet Fiber Switch. It has one

10/100/1000Mbps Ethernet port and one 1.25Gbps fiber port. It extends the transmission distance

from 100m to 120km via copper cables. There are also many other advantages such as isolation

protection, good data security, working stability and easy maintenance.

1, Support the switch between 10/100/1000Base-T and 1000Base-SX/LX

2, 1*1.25Gbps full duplex fiber port, 1*10/100/1000M adaptive Ethernet port

3, Support 10/100/1000M rate, support MDI/MDI-X adaptive, support full/half duplex adaptive

4, Each port has the complete LED Indicator light

5, Support IEEE802.1d Spanning Tree

6, Support high performance QoS function on each port

7, 1*9 fixed fiber module or SFP slot optional

8, Support 9K bytes Jumbo Packet

9, Low time delay, data isolation function

10, Require no configuration and will instantly operate as soon as you power it up

11, Small volume

12, Low power consumption chip with heat sink built in to ensure longtime efficient operation.

Parameters	Specifications
Standards	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-TX/FX
Ethernet Port	Connector: RJ45 Data Rate: 10/100/1000M Distance: 100m UTP Type: UTP-5E or higher level
Fiber Port	Connector: SC/FC/ST/SFP slot Data Rate: 1.25Gbps Distance: 550m～100km
Port	One RJ45 port, Single fiber port (SC/ST/FC Optional)
Performance	Processing Type: Store and Forward MAC Table Size: 2K Buffer Space: 1Mbit Maximum packet length: 9K Back bandwidth: 4G Time Delay: ＜20μs
Forward / Filter Rate	10M: 14,880/14,880pps 100M: 148,800/148,800pps 1000M: 1,488,000/1,488,000pps
Power Supply	External : 5V DC 2A Built-in: 100 V to 240 V AC 50Hz to 60Hz Power Consumption : ≤5W
Operating Temperature	0 °C to +70 °C
Storage Temperature	-20 °C to +80 °C
Relative Humidity	5% to 90% (non-condensing)

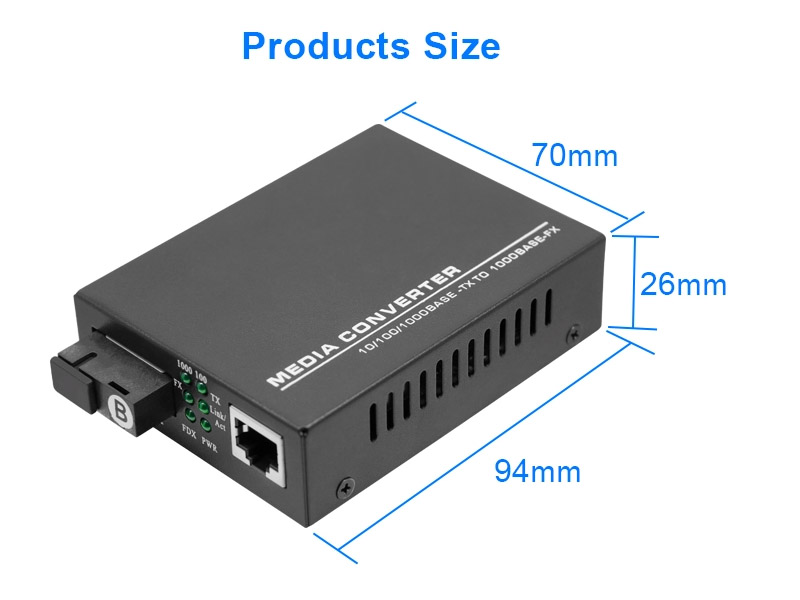

Dimensions	95mm * 70 mm * 25mm
Net Weight	0.25 kg
Emissions	FCC , CCC, RoHS, CE
