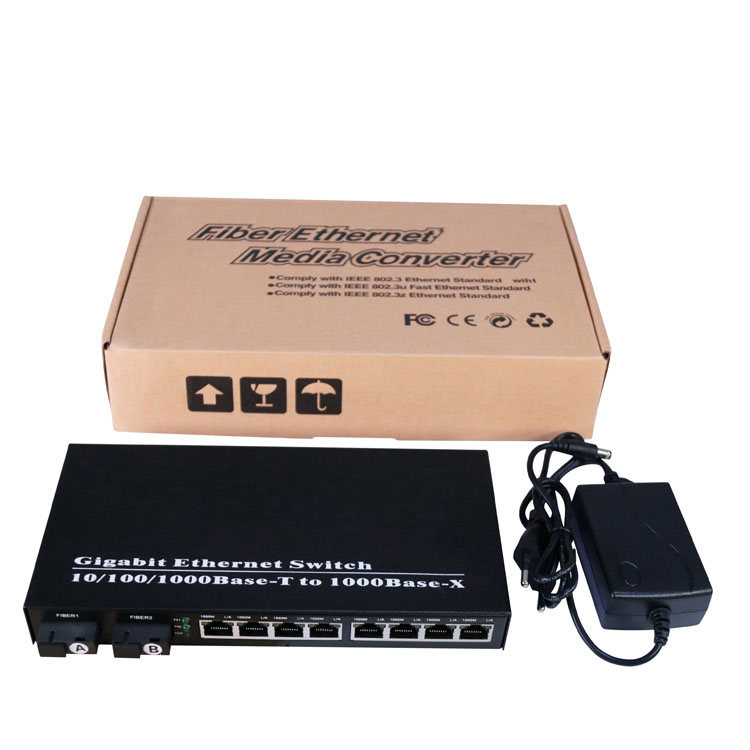

SST-2F8ET-1X9 Fiber optic switch 10/100/1000M auto-adaptive Ethernet fiber optical transceiver, with 2*1.25Gbps fiber ports
and 8*10/100/1000Mbps Ethernet ports, using the latest design, high-performance chips, high-quality optical transceiver module,
stable function and excellent quality, adaptability, and common network equipment can normally connection. For telecommunications,
broadcasting, broadband networks that require high-speed, high data traffic and high-performance, high-reliability Ethernet environment.
Product Features
1. Using international big brand chips, stable and reliable performance
2. Provide 8 10/100/1000Base-Tx electrical ports
3. Provide 2 1000Base-Fx optical ports
4. Support 10/100/1000Base-Tx adaptive
5. Support full/half duplex adaptive
6. Support crossover line/through line adaptive
7. Support DC5/12V power input
8. Support SC interface, FC/ST interface optional
9. Support multi-mode, single-mode optical cable
10. Support dual fiber, single fiber bidirectional transmission
11. Support photoelectric mutual control (LFP) function (optional)
12. External power adapter, support 100~240V wide input
13. Plug and play, easy maintenance
Specification
|
Protocol |
IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3z 1000Base-SX/LX IEEE802.3x Flow control IEEE 802.3ab 1000Base-T IEEE802.1d Spanning Tree |
|
Product Name |
1000Mbps 10 ports optic fiber switch |
|
Ethernet Port |
8*10/100/1000Mbps RJ45 ports Support 10/100/1000Base-Tx adaptive Support MDI/MDI-X adaptive Support 100 meters transmission distance |
|
Fiber Port |
2*1.25Gbps fiber ports Support 1000Base-Fx rate Default 1x9 module, SC interface (FC/ST interface optional) Multimode fiber: 1310nm 550m Single-mode fiber: 1310nm 20/40km; 1550nm 60/80/100km Optional SFP module, LC interface |
|
Indicator |
PWR: Power indicator FDX: Full duplex indicator Optical port indicator: FX Link/Act (connection); Optical port rate indicator: FX1000, FX100; Electric port indicator: TX Link/Act (connection) LFP: LFP function indicator (specified model) |
|
Power |
Power type: External power supply Input Voltage: AC100V~240V 50/60Hz Connector: DC Socket Working Voltage: DC5V or 12V |
|
Environment |
Storage Temperature: -40~70℃ Operating Temperature: -10~55℃ Relative Humidity: 5-90% ( no condensation) |
|
Warranty |
3 years |
