SST-2F24ET-SFP Gigabit Ethernet switch with 24* 10/100/1000M auto-sensing ports and 2*1000M SFP port. Can automatically
adapt to full or half duplex mode, which enables bidirectional transmission rates up to 2000Mbps per port.
MAC address self-learning function, to ensure error-free data transmission. Store and forward switching mode,
prevents damaged packets flooded in the network. Flow control function, can prevent instantaneous large amounts of data on
the network impact, support Auto-MDI / MDIX auto-flip function. Large capacity, high bandwidth, non-blocking full wire speed
on all ports work, support long frame transmission; the use of intelligent and secure network of Internet cafes, hotels, Intelligent
Community, SMEs, high-definition network video surveillance to provide a low-cost, high reliable solution.
Product Features

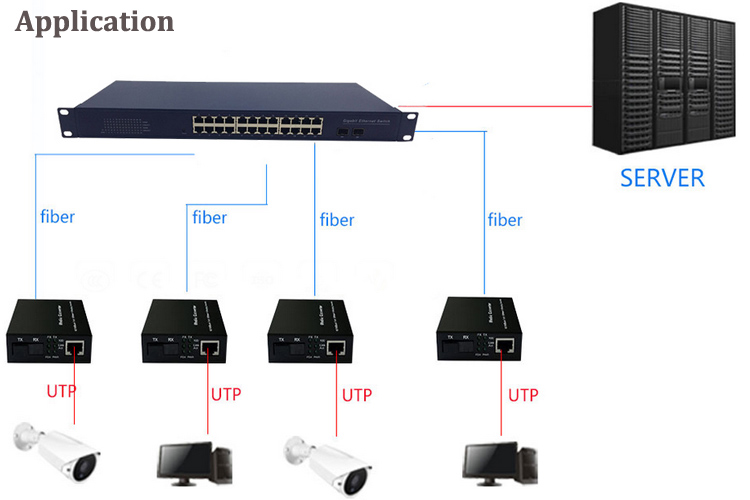

1, Can transfer data for network surveillance cameras
2, 24x 1000Mbps auto-sensing RJ45 ports and 2x1000Mbps SFP port
3, Supports port auto-flip (Auto MDI/ MDIX)
4, Maximum power consumption: 15W
5, Adopts store-and-forward architecture
6, Features with fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall mounting
7, 1U rack mount type,double power supply
8, Optic fiber module is not included, can be ordered separately
Specification
|
Standards |
IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree |
|
Certifications |
CCC,CE, FCC, RoHS |
|
Ethernet Port |
Connector:RJ45 Data Rate: 10/100/1000M Distance: 100m UTP Type:UTP-5E or higher level |
|
Fiber Port |
Connector: SFP slot Data Rate: 1.25Gbps Optical wavelength:850nm/1310nm/1490nm/1550nm Fiber type:single mode 9/125μm,multimode 50/125μm,62.5/125μm Distance: 550m~100km |
|
Performance |
Processing Type : Store and Forwarding Jumbo Packet: 10K bytes MAC Table: 8K Bandwidth: 52G Buffer Space: 4.1M Time Delay:<20μs |
|
Power |
Power type:external power supply Input Voltage:AC100V~240V 50/60Hz Connector: AC Socket Working Voltage:5V Power Consumption: 4W~10W |
|
Environment |
Storage Temperature:-40~70℃ Operating Temperature: -10~55℃ Relative Humidity: 5-90% ( no condensation) |
|
Warranty |
3 year |
|
Physical Characteristics |
Dimension: 440×170×45mm Weight:2.0kg Color: Metal,Blue |
