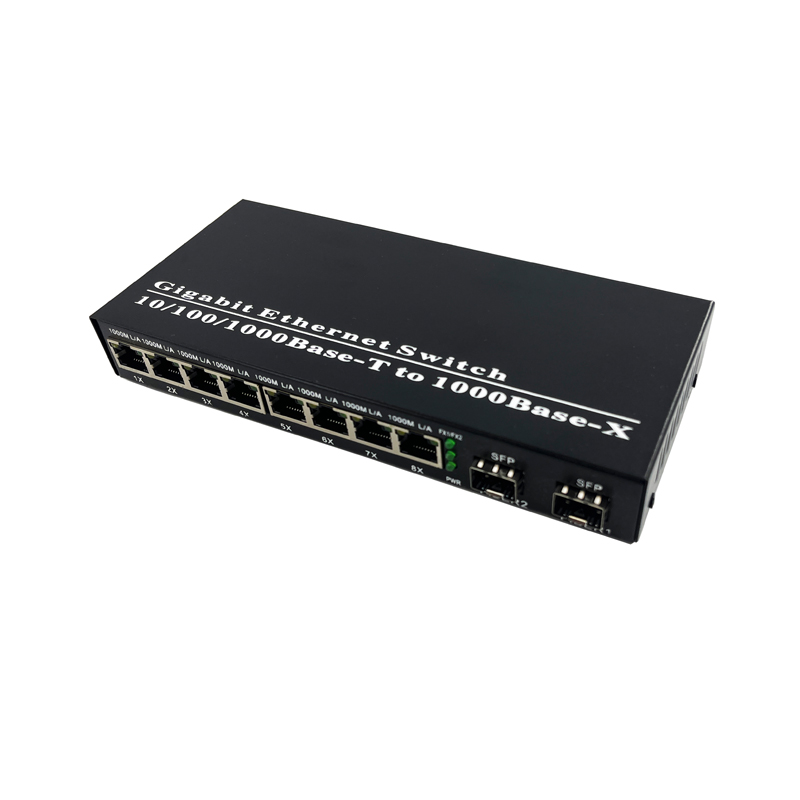

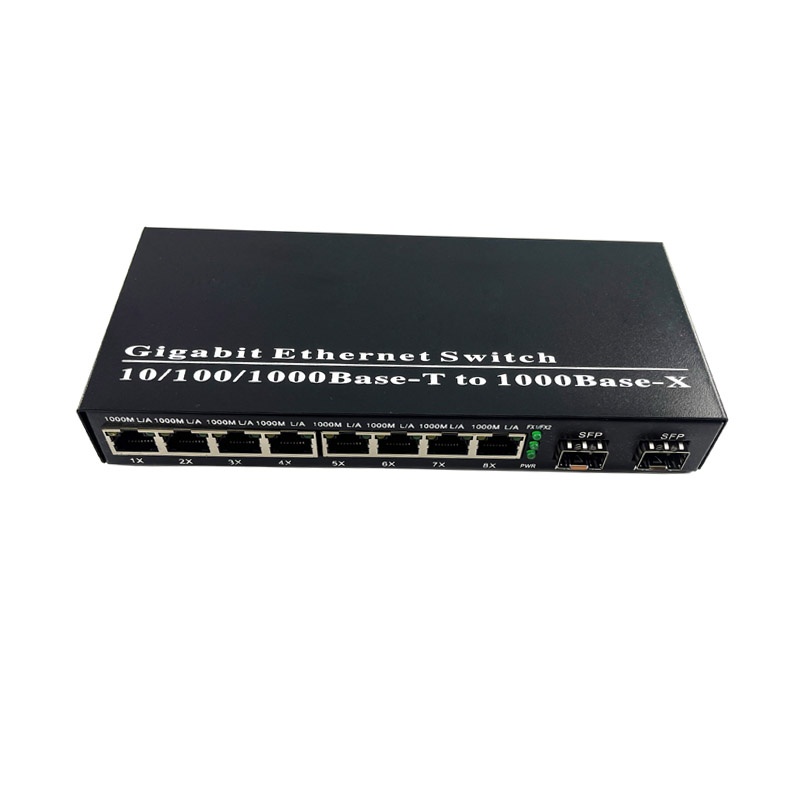

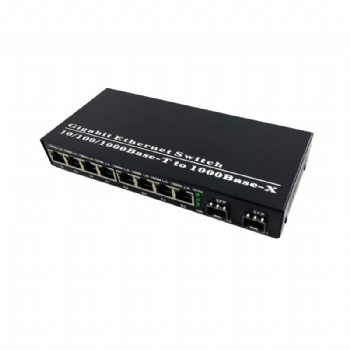

Ethernet Fiber Switch 10 ports

Ethernet Fiber Switch 10 ports is an Ethernet Fiber Switch which is specially designed for network monitoring.
It has eight 10/100/1000Mbps Ethernet ports and two 1.25Gbps fiber ports. It adopts Realtek chips to ensure
low power consumption and high stability. It extends the transmission distance of a network from 100m to 120km
via copper cables. There are also many other advantages such as isolation protection, good data security, working
stability and easy maintenance. Its excellent performance protects the communication equipment from lightning,
surge and EMI in bad weather.

Product Feature

1, Support the switch between 10/100/1000Base-T and 1000Base-SX/LX

2, 2*1.25Gbps full-duplex fiber ports and 8*1000M Ethernet ports with auto-negotiation function

3, Support 1000M speed rate,MDI/MDIX and half/full-duplex with auto-negotiation function

4, Each port has the complete LED Indicator light

5, Support SFP modules

6, Support IEEE802.1d Spanning Tree

7, Support high performance QoS function on each port,support broadcasting storm control

8, Support 12-20V voltage input

9, Internal 4K MAC Address Entities

10, Support 9216 bytes Jumbo packet

11, Support IEEE 802.3x flow control and back pressure control

12, Require no configuration and will instantly operate as soon as you power it up

13, Low power consumption chip with heat sink built in to ensure longtime efficient operation.

Specification

Standards	IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3z 1000Base-SX/LX IEEE802.3ab 1000Base-T	IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree IEEE802.3q VLAN
Certifications	CCC, CE, FCC, RoHS
Ethernet Port	Ø Connector: RJ45 Ø Data Rate: 10/100/1000M Ø Distance: 100m Ø UTP Type: UTP-5E or higher level
Fiber Port	Ø Connector: SFP slot Ø Data Rate: 1.25Gbps Ø Optical wavelength: 850nm/1310nm/1490nm/1550nm Ø Distance: 550m～100km
Performance	Ø Processing Type: Store and Forward Ø MAC Table Size: 4K Ø Buffer Space: 1Mbit Ø Maximum Packet Length: 9216 bytes Ø Back bandwidth: 20G Ø Time Delay: ＜20μs
Power	Ø Power type: external power supply Ø Input Voltage: AC100V～240V 50/60Hz Ø Connector: DC Socket Ø Working Voltage: 5V Ø Power Consumption: 2.2W～4.5W
Environment	Ø Storage Temperature: -40～70℃ Ø Operating Temperature: -10～55℃ Ø Relative Humidity: 5-90% ( no condensation)
Warranty	1 year
Physical Characteristics	Ø Dimension: 214×68×27mm Ø Weight: 0.30kg Ø Color: Metal, Black
