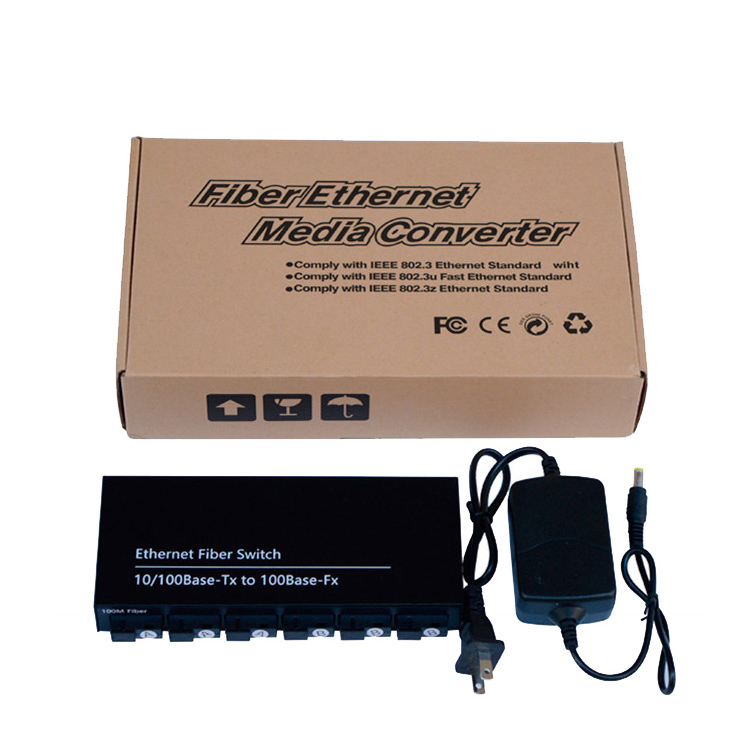

Fiber optic switch SST-6F2EH-1X9 has 2*10/100Mbps Ethernet ports and 6*155Mbps fiber ports.It is equipped with imported chips to ensure low power consumption and high stability. It extends the transmission distance of a network from 100m to 120km via copper cables; there are also many other advantages such as isolation protection, good data security, working stability and easy maintenance.
Product Features
1, Support the switch between 10/100Base-T and 100Base-FX2, 8*155Mbps full-duplex fiber ports and 2*10/100M adaptive Ethernet ports
3, Support MDI/MDIX and half/full-duplex with auto-negotiation function
4, Each port has the complete LED Indicator light
5, Support single mode single fiber, single mode dual fiber, multi-mode dual fiber and SFP slot
6, Support IEEE802.1d Spanning Tree
7, Support high performance QoS function on each port
8, Support broadcasting storm protection
9, Support 5-16V voltage input
10, Support 2M bit buffer space
11, Internal 2K MAC Address Entities
12, Support IEEE 802.3x flow control and back pressure control
13, Require no configuration and will instantly operate as soon as you power it up
14, Use US Marvel industrial chip, low power consumption and high stability
15, Heat sink built in to ensure longtime efficient operation.
Product Specification
| Model number |
SST-6F2EH-1X9 |
|
|
Standards |
IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3z 1000Base-SX/LX |
IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree IEEE802.1az |
|
Ethernet Port |
Connector: 2*RJ45 Data Rate: 10/100M Distance: 100m UTP Type: UTP-5E or higher level |
|
|
Fiber Port |
Connector: 6*SC/FC/ST slot Data Rate: 155Mbps Optical Wavelength: 850nm/1310nm/1490nm/1550nm Distance: 2km~120km |
|
|
Performance |
Processing Type: Store and Forward MAC Table Size: 2K Buffer Space: 2Mbit Back bandwidth: 1.6G Time Delay: <150μs |
|
|
Power |
Power type: external power supply Input Voltage: AC100V~240V 50/60Hz Connector: DC Socket Working Voltage: 5V Power Consumption: 4W~10W |
|
|
Environment |
Storage Temperature: -40~70℃ Operating Temperature: -10~55℃ Relative Humidity: 5-90% ( no condensation) |
|
|
Warranty |
3 years |
|
|
Physical Characteristics |
Dimension: 180mm*90mm*26mm Weight: 0.7kg Color: Metal, Black |
|
