Enterprise Dual-band Gigabit Wireless VoIP Router

Enterprise Dual-band Gigabit Wireless VoIP Router

Product No.：SST-9601
Online Inquiry

Enterprise Dual-band Gigabit Wireless VoIP Router
(SST-9601)

SST-9601 is a feature-rich router with VoIP and routing functions, it is suitable for SMBs to
create wireless offices.

Feature Keys
1, Layer2/3QoS
2, 10/100/1000Mbps Ethernet
3, 1 FXS port
4, Real-time IP fax, T.38 and T.30
5, 802.11a/b/g/n/ac 2.4GHz&5GHz

Gigabit Ethernet Port

5*10/100/1000M Gigabit Ethernet ports provide reliable and high-speed network, transmitting and receiving data smoothly.

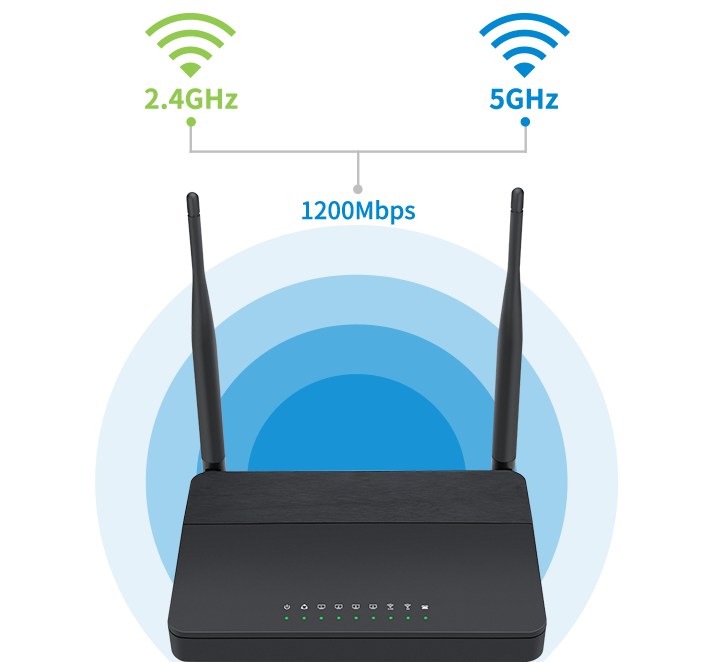

Dual-Band Wi-Fi

Support 802.11ac and delivers up to 1200 Mbps. Dual-band 2.4 GHz and 5 GHz Wi-Fi can reduce interference, ensure transmission quality, and enhance data throughput

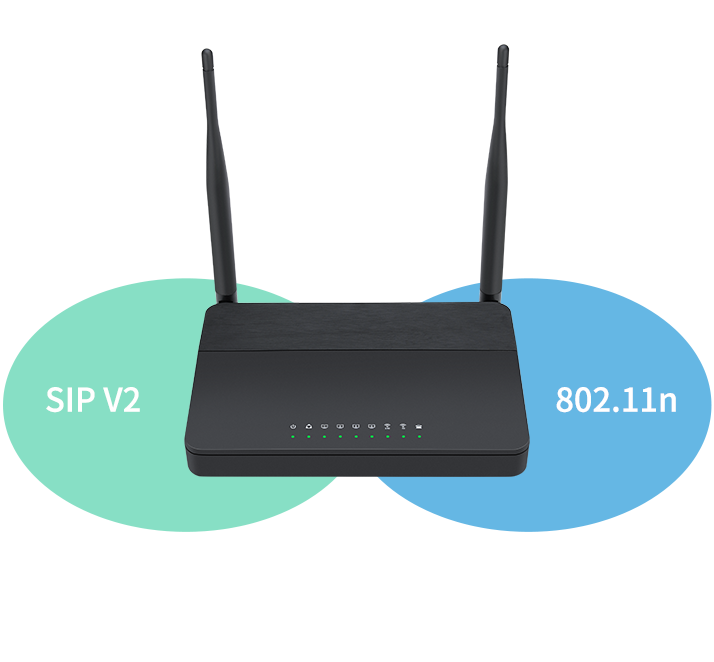

Broad Compatibility

The 9601 is based on SIP V2 and 802.11n standard and compatible with most service providers, which brings great convenience when deploying VoIP network.

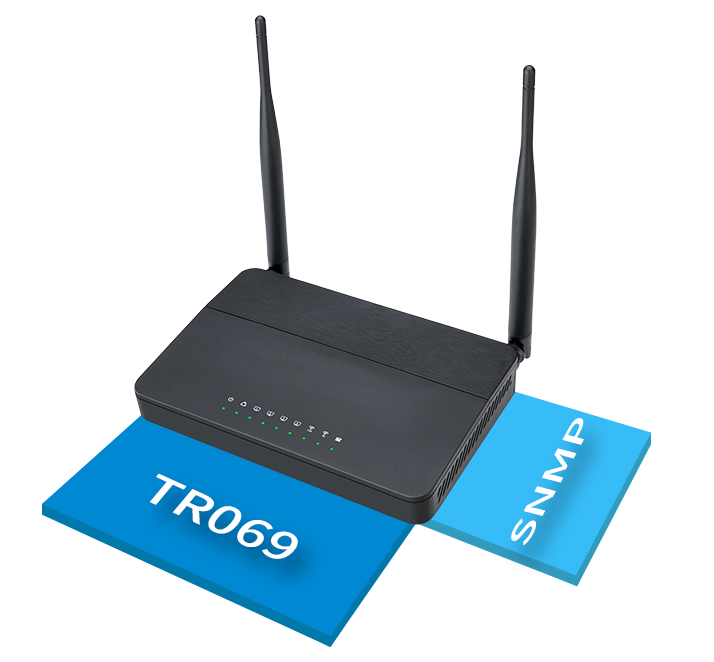

Easy Management
Equipped with advanced management protocols such as SNMP and TR069, which is easy to achieve unified deployment and centralized management.

Technical Parameters

Chipset Solution	MT7621A,MT7612E,MT7603E
Flash	16MB Flash
RAM	64MB DDR2 RAM
Power	AC/DC Adapter AC Input: 100~240V, 50~60Hz DC Output: 12V, 1A
Operating System	Linux
I/O Interfaces	1 RJ-45 for WAN port (Ethernet 1000 Base-T) 4 RJ-45 for LAN port (Ethernet 1000Base-T) 1x FXS Two 5dBi Antenna for IEEE802.11n 2T2R Wireless
Environmental	Operation Temperature: 0~50 Degree C Storage Temperature: -25~ 85 Degree C Relative Humidity: 10%~90% No Condensing
Audio Codec	G.711(A/u),PESQ>4.3 G.729AB,PESQ>3.7 G.722,G.723,G.726,iLBC Adaptive Jitter Buffer Management Voice Activity Detection Comfort Noise Generation Echo Cancellation T.30 FAX with G.711 Real time FAX over IP via
Key Features	Hardware NAT(HNAT) engine with 1000Mbps NAT/NAPT speed 2T2R 2.4G 802.11 b/g/n(300 Mbps) 2T2R 5G 802.11ac (867 Mbps) 2.4GHz and 5GHz should work simultaneously Support VoIP FXS port with SIP and T.38 FAX
Wireless	TX Power 15dBm @ 2.4GHz 11n MCS7 HT40M 15dBm @ 5GHz 11ac MCS9 VHT80M RX Sensitive -70dBm @ 2.4GHz 11n MCS7 HT40 -53dBm @ 5GHz 11ac MCS9 VHT80 4 SSID Per Radio Static WEP(64/128bit)/Dynamic WEP(64/128bit)/AES(CCMP/TKIP) MAC Certification WEP/WPA-PAK/WPA-PSK(2.0)/WPA/WPA2 AP Isolation and MBSSID AP Isolation WMM/WDS/WPS Station list Radius certification and billing MAC Filter(different from wired MAC Filter)
Protocols	SIP V2.0 (RFC 3261, 3262, 3263, 3264) Backward compatible with RFC2543 Session timer (RFC4028) SDP (RFC2327) RTP/RTCP (RFC823/903) NAPTR for SIP URI lookup (RFC2915) STUN (RFC2030) ARP/RARP (RFC 826/903) SNTP (RFC 2030) Message Waiting Indicator (RFC3842) DHCP Option Codes for SIP (RFC3361) DNS/DNS SRV (RFC1706 and RFC 2782) IEEE802.1Q VLAN/802.1p and IP DSCP
Applications	Support NAT mode and Bridge mode Support DDNS MAC address cloning SIP proxy redundancy NAT Traversal by STUN Built-in Wired speed NAT Router DHCP Server and Client IP conflict detection Port Forwarding, DMZ, SuperDMZ 802.1Q VLAN/802.1p, DSCP, Rate Limiting VPN(PPTP,L2TP, IPSec) Passthrough SNTP IGMPv2, IGMPv3 ACL(Access Control List) Broadcast Strom Control Mac Filtering Firewall(SYN Flooding, IP Spoofing, Smurf Attack, Ping of Death, DoS) Ipv6(Dual Stack) MLDv1, MLDv2
Management	Firmware Upgrade Web Management Interface IVR-driven Management Interface Local and Remote Syslog (RFC3164) Auto Provisioning SNTP Time Synchronization Multi User Level SNMP v2.0 Telnet TR069 System Log: local log and remote log Support Flying FCMS Cloud Management
Call Features	3-way conference Call hold Call forwarding Call Transfer Call waiting Caller ID and CWCID DTMF Relay: In-band, Out-band and SIP INFO QoS Layer 3 Call Log CID/CWCID Dial Plan DTMF Mode: Inband, outband and SIP Info
Regulatory	FCC Part 15 Class B appoval CE certification
