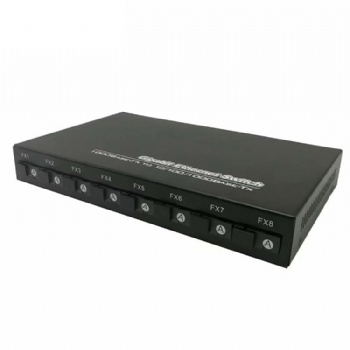

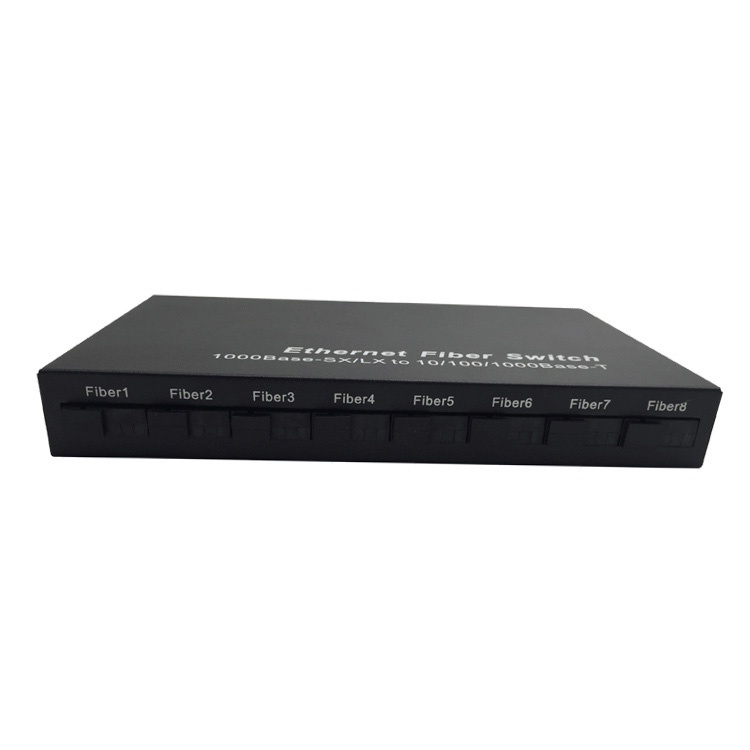

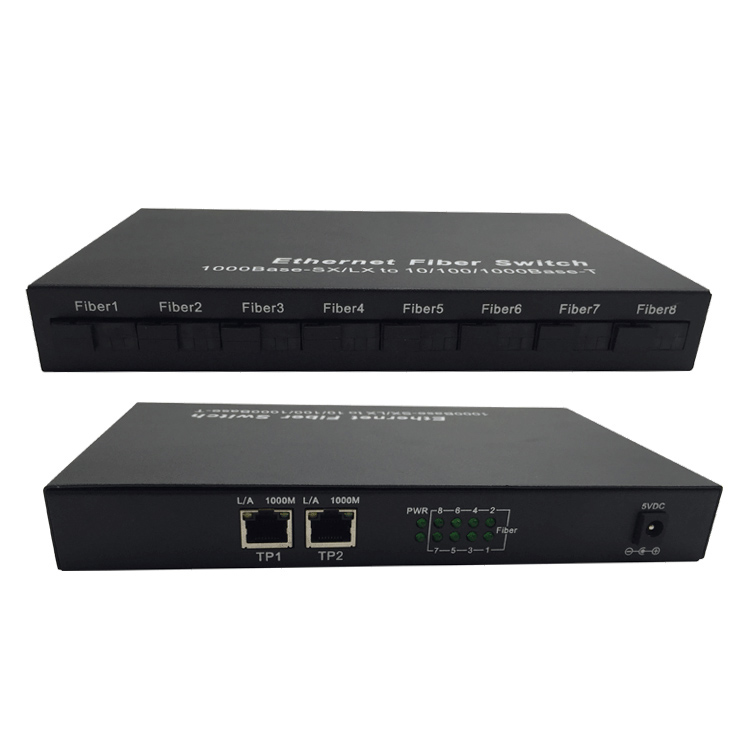

Gigabit 8 fiber 2 RJ45 Fiber Optic Switch

SST-8F2ET-1X9 Fiber optic switch with Gigabit 8*1.25Gbps fiber ports and 2*10/100/1000Mbps RJ45 ports, the multi port fiber media converter, also named unmanageable fiber switch, it has the similar functions as
normal fiber media converter, when you use the converter,all the data from different ports can be shared,
realize the data sharing. It is suitable for intelligent community, it extend the network transmission from
100m to 120km. Also it can be realize the interconnection between motherboard server, Repeaters, hubs, switches, terminal.

Product Features

1. Extend your Ethernet connection up to 0~120km away using fiber optics.

2. Creates an economical Ethernet-fiber/copper fiber link for connecting remote sub networks to larger fiber optic networks/backbones.

3. Designed to provide highspeed bandwidth for demanding large scale work groups that require expansion of Gigabit Ethernet Network.

4. Intelligent transportation supervisory system (ITS).

5. High-speed Way supervisory/Tele-Communication System.

6. 8 ports 2 RJ45 ports fiber optic switch are widely used for corportaion, network security monitoring system,

7. Long distance multi media schooling, campus monitoring, long distance broadcast television transmission system.

Specification

Standards	IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3z 1000Base-SX/LX	IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree IEEE802.1az
Ethernet Port	Connector: RJ45 Data Rate: 10/100/1000Mbps Distance: 100m UTP Type: UTP-5E or higher level
Fiber Port	Connector: SC slot Data Rate: 1.25Gbps Optical Wavelength: 1310nm/1550nm Distance: 20km
Performance	Processing Type: Store and Forward MAC Table Size: 16K Buffer Space: 4Mbit Jumbo packet: 16K Back bandwidth: 20G Time Delay: ＜150μs
Power	Power type: External power supply Input Voltage: AC100V～240V 50/60Hz Connector: DC Socket Working Voltage: 5V Power Consumption: 4W～10W
Environment	Storage Temperature: -20～70℃ Ambient Temperature: -40～75℃ Relative Humidity: 5-90% ( no condensation)
Warranty	3 years
Physical Characteristics	Dimension: 215×135×33mm Weight: 0.6kg Color: Metal, Black
