Cellular feature – 4G LTE  CAT 6，CAT 12 Version

3G/4G

data connectivity

It provides data connectivity on LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA networks.

3G/4G

Frequency bands

Version E.

    LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32(Optional)

    LTE-TDD: B38/B40/B41/B42(Optional) /B43(Optional)

    WCDMA: B1/B3/B5/B8

Verison A.

    LTE-FDD: B2/B4/B5/B7/B12/B13/B14B25/B26/B29/B30/B66/B71

    LTE-TDD: B41/B48

Version LA.

    LTE-FDD: B2/B4/B5/B7/B8/B28/B66

    LTE-TDD: B42(Optional) /B43(Optional)

WCDMA: B2/B4/B5/B8

Remarks. More frequency bands or requirementes please contact with us.

3G/4G  Data rates

4G LTE--CAT 6

 LTE-FDD  Max  300M(DL) ,  Max  50Mbps (UL)

 LTE-TDD  Max  226M (DL) , Max 28Mbps (UL).

4G LTE-CAT 12

LTE-FDD. Max 600Mbps (DL)，Max 150Mbps (UL) .

LTE-TDD. Max 430Mbps (DL)，Max 90Mbps   (UL).

HSPA+.

DL 42Mbps, UL 11.2Mbps.

WCDMA.

DL  384Kbps,  UL  384Kbps

3G/4G

Transmitting Power

◆  Class 3 (23 dBm±2 dB) for LTE-TDD bands

◆  Class 3 (23 dBm±2 dB) for LTE-FDD bands

◆  Class 3 (24 dBm+ 1/-3 dB) for WCDMA bands

3G/4G LTE

Receiving Sensitivity

WCDMA B1 , -106.7 dBm

WCDMA B2 , -104.7 dBm

WCDMA B3 , -103.7 dBm

WCDMA B4 , -106.7 dBm

WCDMA B5 , -104.7 dBm

WCDMA B6 , -106.7 dBm

WCDMA B8 , -103.7 dBm

WCDMA B19 , -106.7 dBm

LTE-FDD B1(10MHz) , -96.3 dBm

LTE-FDD B2(10MHz) , -94.3 dBm

LTE-FDD B3(10MHz) , -93.3 dBm

LTE-FDD B4(10MHz) , -96.3 dBm

LTE-FDD B5(10MHz) , -94.3 dBm

LTE-FDD B7(10MHz) , -94.3 dBm

LTE-FDD B8(10MHz) , -93.3 dBm

LTE-FDD B12(10MHz) , -93.3 dBm

LTE-FDD B13(10MHz) , -93.3 dBm

LTE-FDD B14(10MHz) , -93.3 dBm

LTE-FDD B17(10MHz) , -93.3 dBm

LTE-FDD B18(10MHz) , -96.3 dBm

LTE-FDD B19(10MHz) , -96.3 dBm

LTE-FDD B20(10MHz) , -96.3 dBm

LTE-FDD B25(10MHz) , -92.8 dBm

LTE-FDD B26(10MHz) , -93.8 dBm

LTE-FDD B28(10MHz) , -94.8 dBm

LTE-FDD B30(10MHz) , -95.3 dBm

LTE-FDD B32(10MHz) , -96.3 dBm

LTE-FDD B66(10MHz) , -95.8 dBm

LTE-FDD B71(10MHz) , -94.3 dBm

LTE-TDD B38(10MHz) , -96.3 dBm

LTE-TDD B39(10MHz) , -96.3 dBm

LTE-TDD B40(10MHz) , -96.3 dBm

LTE-TDD B41(10MHz) , -94.3 dBm

LTE-TDD B42(10MHz) , -95 dBm

LTE-TDD B43(10MHz) , -95 dBm

LTE-TDD B46(20MHz) , -88.5 dBm

LTE-TDD B48(10MHz) , -95 dBm

LTE features

CAT 6 version.

◆ Supports 3GPP Rel-12 CAT 6 FDD and TDD standard.

◆ Supports uplink QPSK and  16 QAM modulation.

◆ Supports downlink QPSK , 16 QAM and 64 QAM.

◆ Supports 1.4MHz to 40MHz (2 CA) RF bandwidth.

CAT 12  version.

◆ Supports 3GPPRel-12 CAT 12 FDD and TDD standard.

◆ Supports uplink QPSK ,16 QAM and 64 QAM modulation.

◆ Supports downlink QPSK , 16 QAM ,64 QAM and 256 QAM.

◆ Supports 1.4MHz to 60MHz (3 CA) RF bandwidth.

UMTS  features

◆ Supports 3GPP Rel-9  DC-HSDPA,DC-HSUPA,HSPA+,HSDPA,HSUPA and WACDMA

◆ Supports QPSK ,16 QAM and 64 QAM modulation.

Antennas

◆ 2*2 MIMO 4G internal antennas or 4*4 MIMO 4G internal antenna, with 50 Ω impedance.

◆ 1* GPS antenna.(Optional).

Cellular feature– 5G version

3G/4G/5G

data connectivity

It provides data connectivity on 5G NR SA and NSA, LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA,HSUPA and WCDMA networks.

3G/4G/5G

Frequency bands

5G NR SA.

n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79

5G NR NSA.

n38/n41/n77/n78/n79

LTE-FDD. B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

LTE-TDD.

B34/B38/B39/B40/B41/B42/B43/B48

LAA  B46

WCDMA.

B1/B2/B3/B4/B5/B8/B19

Remarks. More frquency bands or requirements please contact with us.

3G/4G/5G

Data rates

◆ 5G NSA. Max 2.5Gbps (DL)/650Mbps (UL)

◆ 5G SA. Max 2.1Gbps (DL)/900Mbps (UL)

◆ LTE. Max 1.0Gbps (DL)/200Mbps (UL)

◆ DC-HSDPA. Max 42Mbps (DL)

◆ HSUPA. Max 5.76Mbps (UL)

◆ WCDMA Max 384Kbps (DL)/384Kbps (UL)

3G/4G/5G

Transmitting Power

◆ Class 3 (24dBm+1/-3dB) for WCDMA bands.

◆ Class 3 (23dBm±2dB) for LTE-FDD bands.

◆ Class 3 (23dBm±2dB) for LTE-TDD bands.

◆ Class 3 (23dBm±2dB) for 5G NR bands.

◆ Class 2 (26dBm±2dB) for LTE B38/B40/B41/B42 bands.

◆ Class 2 (26dBm±2dB) for 5G NR n41/n77/n78/n79 bands .

5G NR features

◆ 3GPP Rel-15

◆ Modulation:

- Uplink 256QAM

- Downlink 256QAM

◆ Downlink 4 ×4 MIMO on n1/n2/n3/n7/25/n38/n40/n41/n48/n66/n77/n78/n79

◆ Uplink 2 × 2 MIMO on n41/n77/n78/n79

◆ SCS 15 kHz and 30 kHz

◆ 5G NR refarmed band bandwidth ≤ 20 MHz

◆ 5G NR n41/n77/n78/n79 bandwidth ≤ 100 MHz

◆ SA and NSA operation modes

◆ NSA on n41/n77/n78/n79

◆ SA on all the 5G bands

◆ Option 3x, 3a, and Option 2

LTE features

◆ Supports up to CA Cat 20 FDD and TDD

◆ Supports uplink QPSK, 16-QAM and 64-QAM and 256-QAM modulation

◆ Supports downlink QPSK, 16-QAM and 64-QAM and 256-QAM modulation

◆ Supports 1.4MHz to 20MHz (5×CA) RF bandwidth

◆ Supports 4 * 4 MIMO in DL direction

UMTS features

◆ Supports 3GPP R8 DC-HSDPA, HSPA+, HSDPA standard.

◆ Supports QPSK, 16-QAM and 64-QAM modulation.

Antennas

◆ 4 * 4 MIMO internal antennas, with 50 Ω impedance.

◆ 4 *4 MIMO  5G antenna.

◆ 1* GPS antenna. (Optional)

◆ ANT2_GNSSL1,Antenna 2 interface.

- 5G NR (n77/n78/n79 MIMO2,n41 DRX).

- LTE MHB MIMO2

- B42/B43/B48 MIMO2

- LAA DRX

- GNSS L1

- 1400–6000 MHz

GNSS/GPS (Optional)

GNSS features

◆ Gen9HT of Qualcomm

◆ Protocol: NMEA 0183, Data Update Rate: 1Hz.

◆ GPS,GLONASS,BeiDou(COMPASS)/Galileo.

◆ GPS/Galileo/QZSS.1575.42 ±1.023 (L1) MHz

◆ Galileo.1575.42 ±2.046 (E1) MHz

◆ QZSS. 1575.42 (L1) MHz

◆ GLONASS. 1597.5–1605.8 MHz

◆ BeiDou. 1561.098 ±2.046MHz

SIM card feature

SIM  card

Supports 1* SIM slots, 1.8V / 3V . Or 1* eSIM card. ( Optional )

Hardware feature

CPU

MTK7621A, MIPS1004KC, 880Mbps,Dual-core.

MEMORY

FLASH 16MByte,  DDR3  64MByte

Hardware interface

2* LAN gigabit Ethernet ports.  1*USB2.0 port.

Watchdog

Built-in watchdog feature.

Key button

Reset

Protection  level

Ethernet port , Contact electric shock, +/-4KV, air discharge: +/-8KV.

LED status indicator

PWR ,SYS, Net, WAN, LAN,WLAN

Standard Power

POE power supply  input. DC 24V/1A

Power Supply

POE power supply  input. DC +12/1.5A~36V/0.5A

Peak current

Max current. 2.5A

Working current

Max 360 mA,2.15W  @24 V

Power Consumption

Idle. 80mA, 0.96W @12 V

Data link.  Max 360 mA, 2.15W  @24 V

Peak.  Max 470mA , 3.2W @24V

Temperature

Operating Temperature  -20~+60ºC, Storage Temperature  -30~+70ºC

Environment humidty

5%~95% ,no condensation.

Ingress Protection

IP65

Housing

ABS fireproof plastic material, white shell.

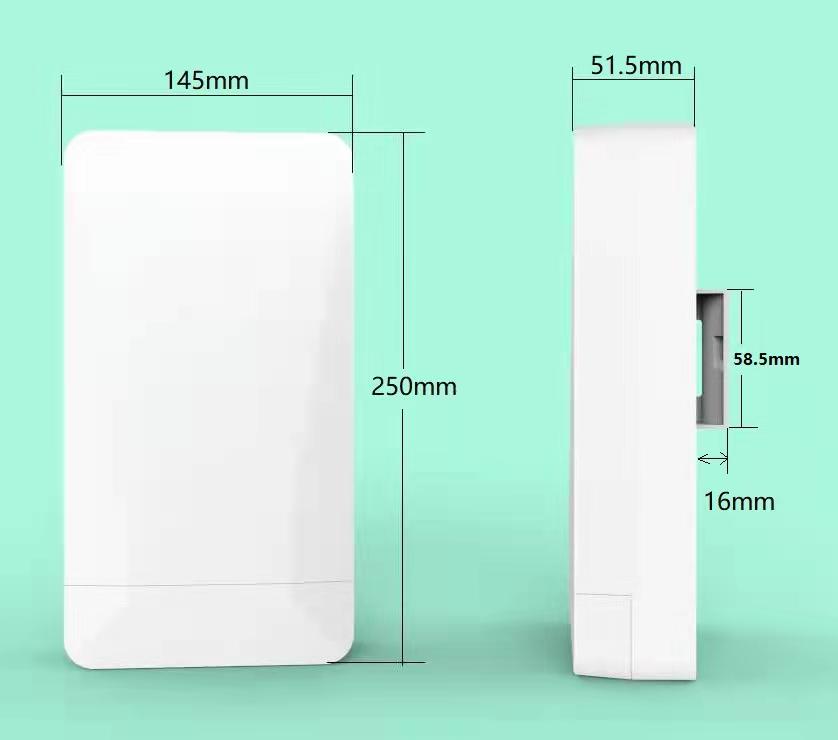

Dimensions

250mm * 145mm * 67.5mm

Installations

Wall or pole mounted.

Weight

   484g

Wi-Fi （Optional）

WLAN

◆ IEEE 802.11b/g/n/ac.

◆ Supports 20MHz,40MHz,80MHz in 5GHz band, and 20MHz,40MHz bandwidth in 2.4GHz band.

◆ Max bandwidth 300Mbps in 2.4GHz band. Max bandwidth 867Mbps in 5GHz band.

Wireless Mode

Access Point (AP), Client

Wireless Speed

300Mbps  @2.4GHz, 867Mbps @ 5GHz.

Wireless Security

Supports WPA, WPA2,WPAI, WEP, TKIP   encryption.

Frequency Bands

2.4 GHz/5GHz

WIFI transmit power

2.4GHz Tx power.

TX CCK, 11Mbps @ -20dBm

HT40,MCS 8 @ -20dBm

HT40,MCS 15 @ -17dBm

5GHz Tx power.

6Mbps OFDM @ -19.5dBm

54Mbps OFDM @ -18dBm

HT20,MCS 0 @ -18.5dBm

HT20,MCS 7 @ -17dBm

HT40,MCS 0 @ -18.5dBm

HT40,MCS 7 @ -17dBm

VHT80,MCS 0 @ -18.5dBm

VHT80,MCS 9 @ -16dBm

WIFI   Rx Sensitivity

2.4GHz Rx sensitivity.

1Mbps CCK @ -98dBm

2Mbps CCK @ -94dBm

5.5Mbps CCK @ -92dBm

11Mbps CCK @ -89dBm

5GHz Rx sensitivity.

6Mbps OFDM @ -93.5dBm

9Mbps OFDM @ -91.5dBm

12Mbps OFDM @ -91dBm

18Mbps OFDM @ -88.5dBm

24Mbps OFDM @ -84.5dBm

36Mbps OFDM @ -82dBm

48Mbps OFDM @ -77dBm

54Mbps OFDM @ -76dBm

Antennas

2*2 MIMO internal antennas, with 50 Ω impedance.

WIFI hotspot sharing

Supports more than 60 users to share WIFI access to the Internet.

  Software feature

Parameter settings

Supports automatic detection of MNC and MCC parameters of global operators. Built-in global operator APN, user name, password and other network parameters. At the same time, manual setting of network parameters is supported.

Dial method

After the device is powered on, the system automatically dials up to connect to the network.

Protocol

Supports PPTP,L2TP,IPSEC VPN,TCP,UDP,DHCP,HTTP,DDNS,TR-069,HTTPS,SSH,SNMP etc protocol.

Routing

Supports static routing, multiple routing tables.

Bridge

Supports 4G/5G bridge mode feature.

Multiple APN

Supports multiple APN access network.

System Assurance

Supports system automatic detection mechanism, automatic recovery of system abnormality or crash.

Data Link Assurance

Built-in data link maintenance and self-recovery mechanism.

Firewall

Support flexible access control of TCP, UDP, ICMP packets.

Supports port Mapping, NAT etc feature.

DDNS

Supported some service providers, others can be configured manually.

Firmware update

Supports local WebUI and remote OTA update firmware.

VLAN

Supports VLAN feature.

Embedded system

OpenWRT  18.06

Application development

    Supports secondary development of application functions based on our device motherboard software.

VPN

VPN  Feature

Supports OpenVPN, IPSEC VPN,PPTP,L2TP etc VPN feature.

MONITORING & MANAGEMENT

Web GUI

HTTP, Firmware Upgrade

Command Line Interface

SSHv2 ,telnet

Management platform

Remote Management Platform
